Nanocrystalline C Cores

Hitachi finemet f3cc0050 nanocrystalline core

Nanocrystalline C core is upgrade product of amorphous c core, with high saturation flux density, low coercivity, low core loss,  low noise, higher frequency up to 20KHz, suitable for main power transformer, audio transformer, output inductor, boost PFC choke coil. Can replace ferrite cores, permalloy cores, silicon steel cores. Dimensions can be custom-made.

Features

Material: Fe-based nanocrystalline
Saturation flux density induction: 1.25T
Curie temperature(℃): 560
Stacking factor: >0.75
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 130
Ribbon thickness: 25μm
Core shape: C type cut core

Applications

>> High frequency transformer (frequency recommend 20-30KHz)
>> Solar inverter filter
>> PFC choke
>> Differential mode choke
>> Output filter
>> Audio transformer
>> High efficient transformer

Standard core dimensions

amorphous and nanocrystalline c cores

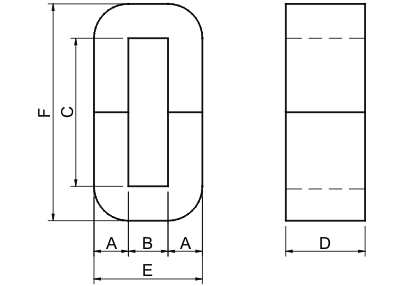

Part No. Core dimensions Mean
path
length
Effictive
cross
section
Weight
A B C D E F LFe Ae Wt
mm mm mm mm mm mm cm cm2 g
KMNC-6.3 10 11 33 20 31 53 11.6 1.56 146
KMNC-8 11 13 30 20 35 52 11.7 1.72 166
KMNC-10 11 13 40 20 35 62 13.7 1.72 192
KMNC-16A 11 13 40 25 35 62 13.7 2.15 240
KMNC-16B 11 13 50 25 35 72 15.7 2.15 272
KMNC-20 11 13 50 30 35 72 15.7 2.57 326
KMNC-25 13 15 56 25 41 82 17.9 2.54 366
KMNC-32 13 15 56 30 41 82 17.9 3.04 439
KMNC-40 13 15 56 35 41 82 17.9 3.04 426
KMNC-50 16 20 70 25 52 102 22.7 3.12 567
KMNC-63 16 20 70 30 52 102 22.7 3.74 680
KMNC-80 16 20 70 40 52 102 22.7 4.99 884
KMNC-100 16 20 70 45 52 102 22.7 5.62 994
KMNC-125 19 25 83 35 63 121 27.2 5.19 1128
KMNC-160 19 25 83 40 63 121 27.2 5.93 1260
KMNC-200 19 25 83 50 63 121 27.2 7.41 1575
KMNC-250 19 25 90 60 63 128 28.6 8.89 1987
KMNC-320 22 35 85 50 79 129 30.6 8.58 2047
KMNC-400 22 35 85 65 79 129 30.6 11.15 2662
KMNC-500 25 40 85 55 90 135 32.5 10.73 2722
KMNC-630 25 40 85 70 90 135 32.5 13.65 3464
KMNC-800A 25 40 85 85 90 135 32.5 16.58 4207
KMNC-800B 30 40 95 85 100 155 36.1 19.89 5602
KMNC-1000 33 40 105 85 106 171 39.0 21.88 6665

Other specifications are available according to customer’s requirements.
