Datasheets

Part no. KMN503220 Application: common mode choke, EMI filter Finished type: plastic cased Core material: Fe-based nanocrystalline Bare core dimensions: OD: 50mm ID: 32mm HT: 20mm Case dimenstions: OD: 53.8mm ID: 28.5mm HT: 24mm AL Value: AL: 68.5uH Min @

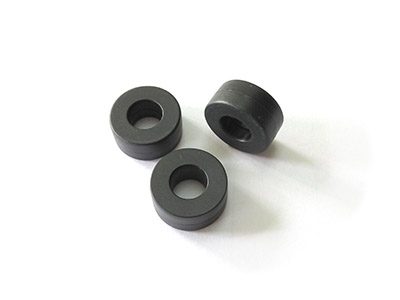

Part no. KMN161006 Application: common mode choke, EMI filter Finished type: plastic cased Core material: Fe-based nanocrystalline Bare core dimensions: OD: 16mm ID: 10mm HT: 6mm Case dimenstions: OD: 17.9mm ID: 8.1mm HT: 8.1mm AL Value: AL: 25.9uH Min @

Nanocrystalline Cores for Common Mode Chokes, KMN402515 (40x25x15 toroidal nanocrystalline core)

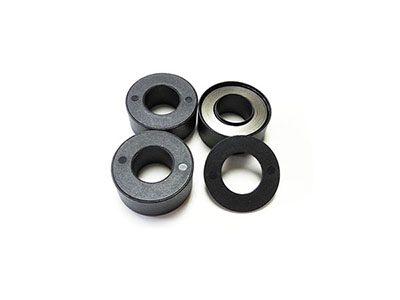

Nanocrystalline Core for Common Mode Choke, KMN261610 (26x16x10 toroidal nanocrystalline core)
