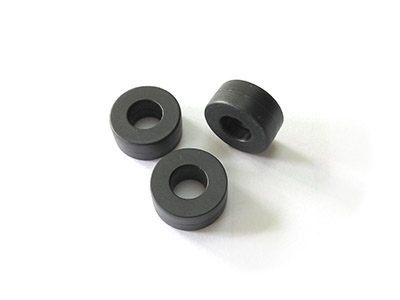

Nanocrystalline core for common mode choke KMN161006 16x10x6mm Toroidal core

magnetec nanoperm nanocrystalline core for common mode choke KMN161006

Part no. KMN161006

Application: common mode choke, EMI filter

Finished type: plastic cased
Core material: Fe-based nanocrystalline

Bare core dimensions:
OD: 16mm
ID: 10mm
HT: 6mm

Case dimenstions:
OD: 17.9mm
ID: 8.1mm
HT: 8.1mm

AL Value:

AL: 25.9uH Min @ 10KHz, 0.25V (u≥60000)
AL: 5.2uH MIn @ 100KHz, 0.25V (u≥12000)
