Application: common mode choke, EMI filter
Finished type: plastic cased
Core material: Fe-based nanocrystalline
Bare core dimensions:
OD: 25.5mm
ID: 16mm
HT: 10mm
Case dimenstions:
OD: 28.4mm
ID: 13.9mm
HT: 13.0mm
AL Value:
AL: 44.6uH Min @ 10KHz, 0.25V (u≥60000)
AL: 8.9uH Min @ 100KHz, 0.25V (u≥12000)
Download PDF Specification KMN261610
Full core list nanocrystalline cores for common mode chokes:

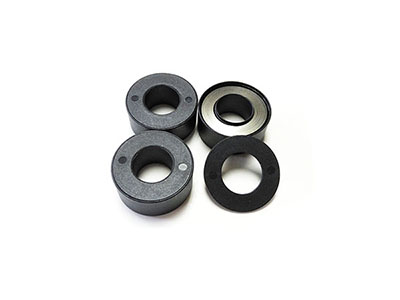

Nanocrystalline Core for Common Mode Choke, KMN261610 (26x16x10 toroidal nano core)
