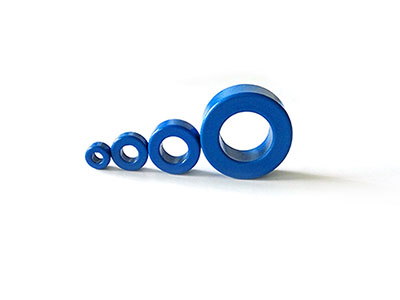

Epoxy coated nanocrystalline core features small size compared with plastic case. Compact volume, less copper wire, less copper lost, energy saving, space saving. Suitable for small copper wire common mode choke, ISDN network transformer, network noise filter, EMC filter, driver transformer.
Features
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: > 50000
Permeability @ 100KHz: >12000
Curie temperature(℃): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Troidal core
Applications
Nanocrystalline bead core for noise suppressor for semiconductor components (e.g. Mosfet)
> IGBT Driver transformer
> Current transformer
> High Frequency Power transformer
> ISDN Network transformer
> EMI/EMC Filter Common mode choke
> HD camera signal transformer
Characteristics:
>Small size – Reducing volume of component
– Reducing copper wires
– Reducing cost
> Size can be custom made — Help customers quick design and mold cost free
> High insulation strength – Withstand voltage meets 1000V requirement
> High permeability — Much higher inductance value than ferrite core
Standard cores
| Part No. | Core dimensions | Case dimensions | Effictive cross section |
Mean path length |
AL Minimum Value |
||||
| od | id | h | OD | ID | H | AFe | lFe | 10kHz, 0.25V | |
| mm | mm | mm | mm | mm | mm | cm2 | cm | μH | |
| KMN040203E | 4 | 2.2 | 3.2 | 4.5 | 1.7 | 3.8 | 0.021 | 0.97 | 10.0 |
| KMN060303E | 6 | 3 | 3.2 | 7.0 | 2.0 | 4.2 | 0.037 | 1.41 | 16.6 |
| KMN060403E | 6 | 4 | 3.2 | 7.0 | 3.0 | 4.2 | 0.025 | 1.57 | 10.0 |
| KMN090503E | 9 | 5 | 3.2 | 10.0 | 4.0 | 4.2 | 0.05 | 2.2 | 15.0 |
| KMN120910E | 11.8 | 8.7 | 10 | 12.8 | 7.7 | 11 | 0.121 | 3.22 | 25.0 |
| KMN140905E | 14 | 9 | 4.5 | 15 | 8 | 5.5 | 0.088 | 3.61 | 16.0 |
| KMN211308E | 21.3 | 13.6 | 8 | 22.3 | 12.6 | 9 | 0.24 | 5.48 | 33.0 |
These cores are our standard products, we can also design and produce high performance cores according to customer’s requirements, including sizes, inductance and applications. We can help customers to select the best performance cores.
Nanocrystalline cores in plastic case: http://www.kingmagnetics.com/nanocrystalline-core.html
